Ultrasonic Flaw Detector
Model：
SUB180
Description：
SUB180 portable ultrasonic flaw detector series is specially designed for personnel use on non-destructive testing, which could testing 、 position 、 evaluation and diagnosis of various flaws.
Features：
High sensitivity, strong penetration, light equipment, fast detection speed, low cost.
ENQUIRY NOWCONTACT：+86-20-32290092

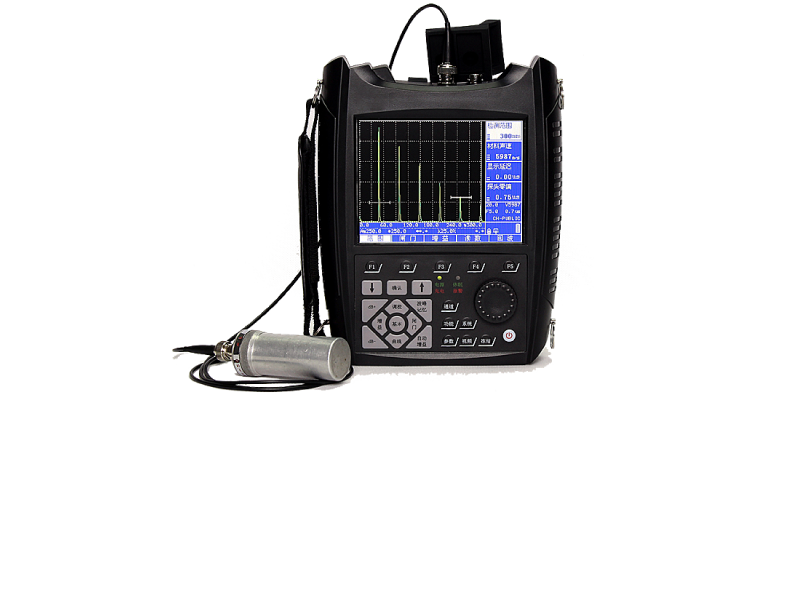

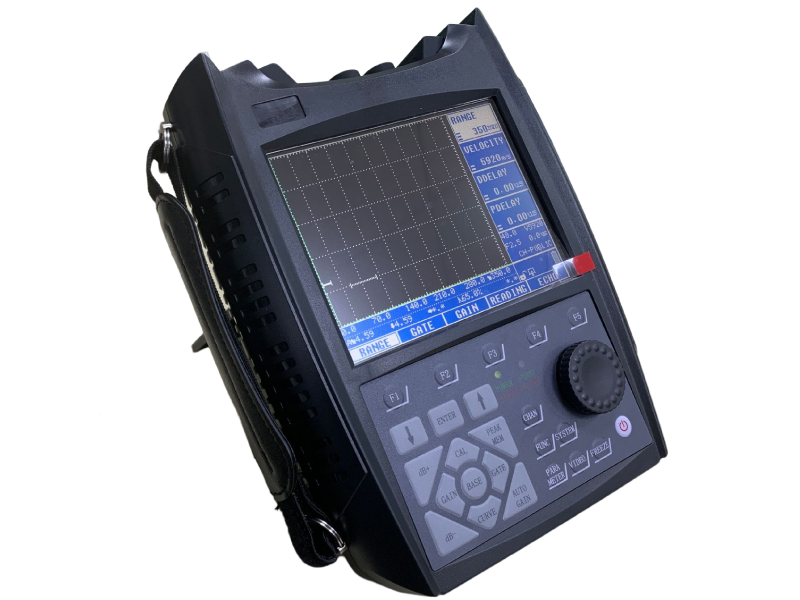

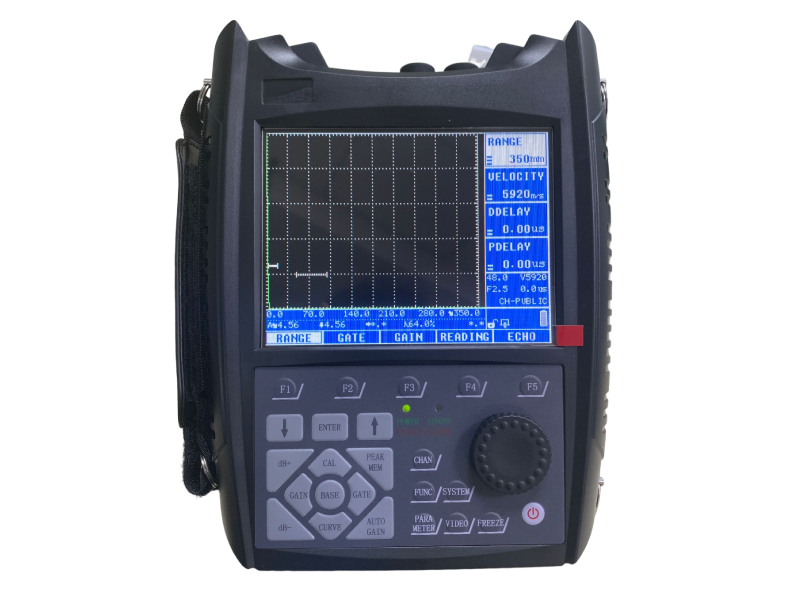

SUB180 Ultrasonic Flaw Detector
SUB180 portable ultrasonic flaw detector series is specially designed for personnel use on non-destructive testing, which could testing、position、evaluation and diagnosis of various flaws. It can easily and accurately conduct non-destructive testing on welding defects, cracks, internal pores of the work piece and other defects. It is widely used on industries such as electrical power project, boiler and pressure vessels, steel structure, military industry, aviation, railway transportation, automatic machine equipment and so on. It is an indispensable testing tool in the field of non-destructive testing.
l Timely and dynamic colorful video
l Various industrial reports can be chosen
l Sound-light alarm, low battery alarming under various condition

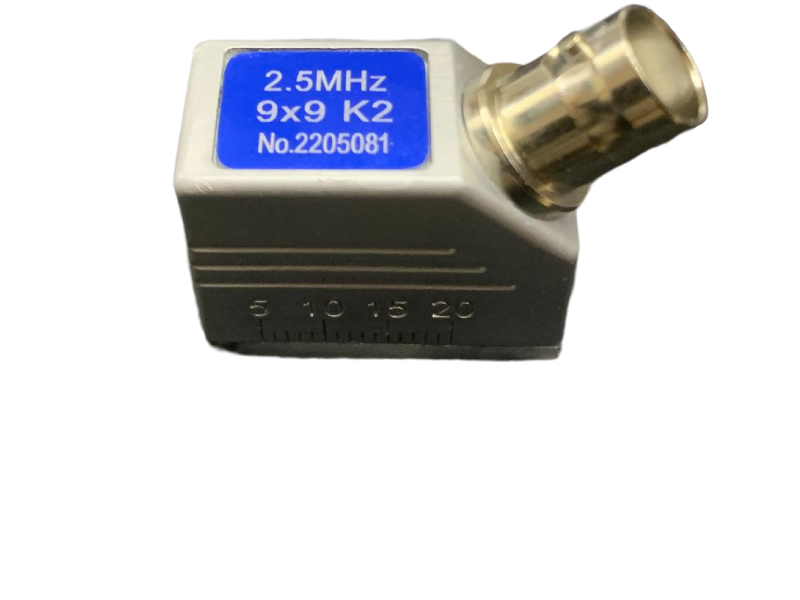

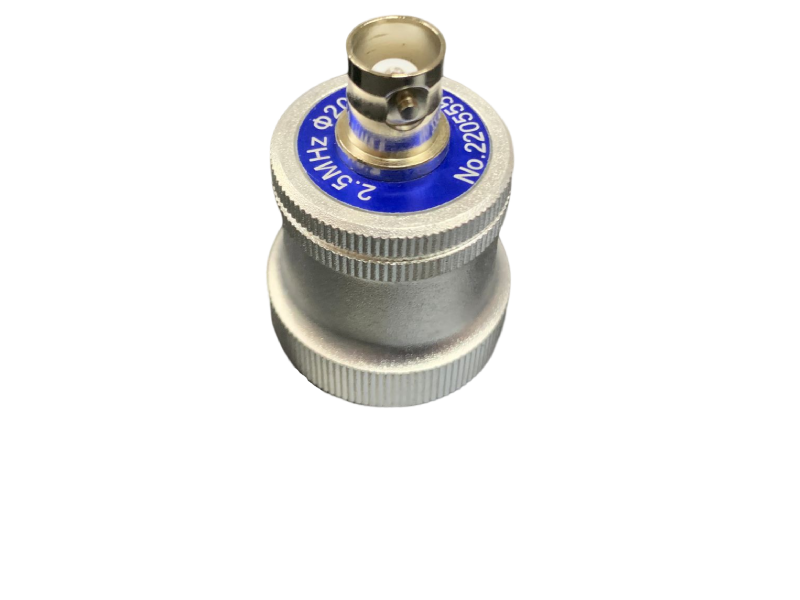

l Single crystal /double /transmission probe can be chosen
l TFT Color screen with 5.7 inches, brightness and color can be set freely
l With the functions of defect, wave crest, memory, assist qualitative evaluation
l Positive half-wave, negative half-wave, full wave, three kinds of detection mode
l Lithium battery ensures more than 20h continuous working, can do testing while charging
l USB2.0 data transmission
l Automatic calibration
|
Item |
SUB180 |
|
Number of channels |
100 |
|
Number of waveforms |
1000 |
|
Video time |
60min+5*20min |
|
Color B scanning |
√ |
|
Grayscale scanning |
√ |
|
Eco Encoding |
Background |
|
Calculation aperture |
√ |
|
Welding Picture |
√ |
|
Crackle Detecting |
√ |
|
Correction of curved surface |
√ |
|
Number of Battery |
2 |
|
Item |
SUB180 |
|
Testing scope (mm) |
0～25000 |
|
Working freq. (MHz) |
0.2～15 |
|
Sound velocity (m/s) |
200～20000 |
|
Surplus sensitivity (dB) |
＞62 |
|
Gain range (dB) |
0～110 |
|
Sampling rate (MHz) |
100 |
|
Display delay (μs) |
-20～+3400 |
|
Probe zero-offset(μs) |
0～99.99 |
|
Level of electrical noise |
≤10% |
|
Resolution Ratio (dB) |
＞40 |
|
Linear inhibition |
0～80% (digital suppression) |
|
Vertical linear error |
≤3% |
|
Horizontal linear error |
≤0.1% |
|
Dynamic range (dB) |
≥32 |
|
Battery (V) |
6x3.7 (lithium battery) |
|
Electricity (V) |
8.4 |
|
Ambient Temp. (°C) |
-20～50 |
|
Ambient humidity |
20%～90%RH |
|
Size (mm) |
230*170*55 |
|
Weight (Kg) |
1.56 |
