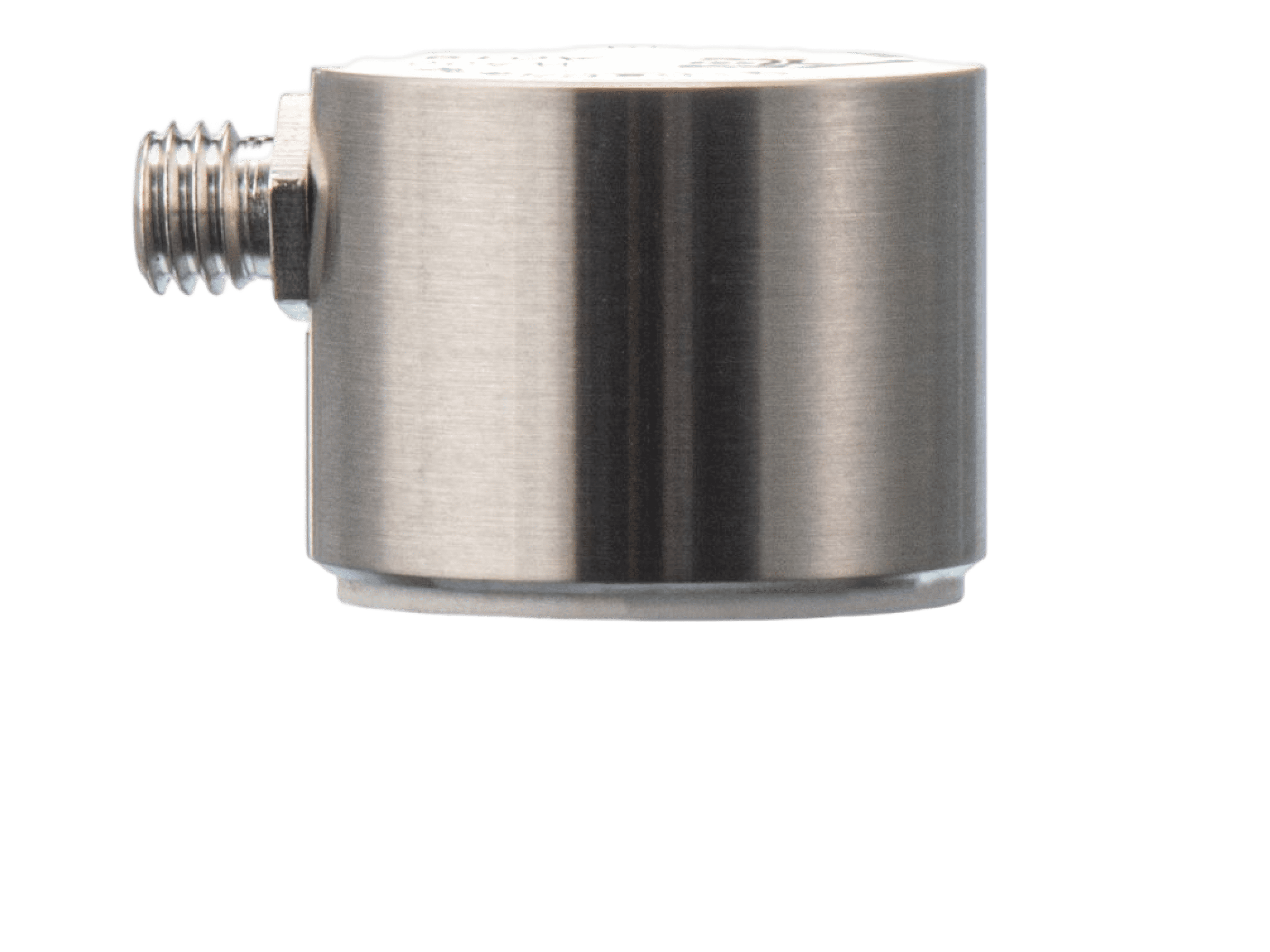

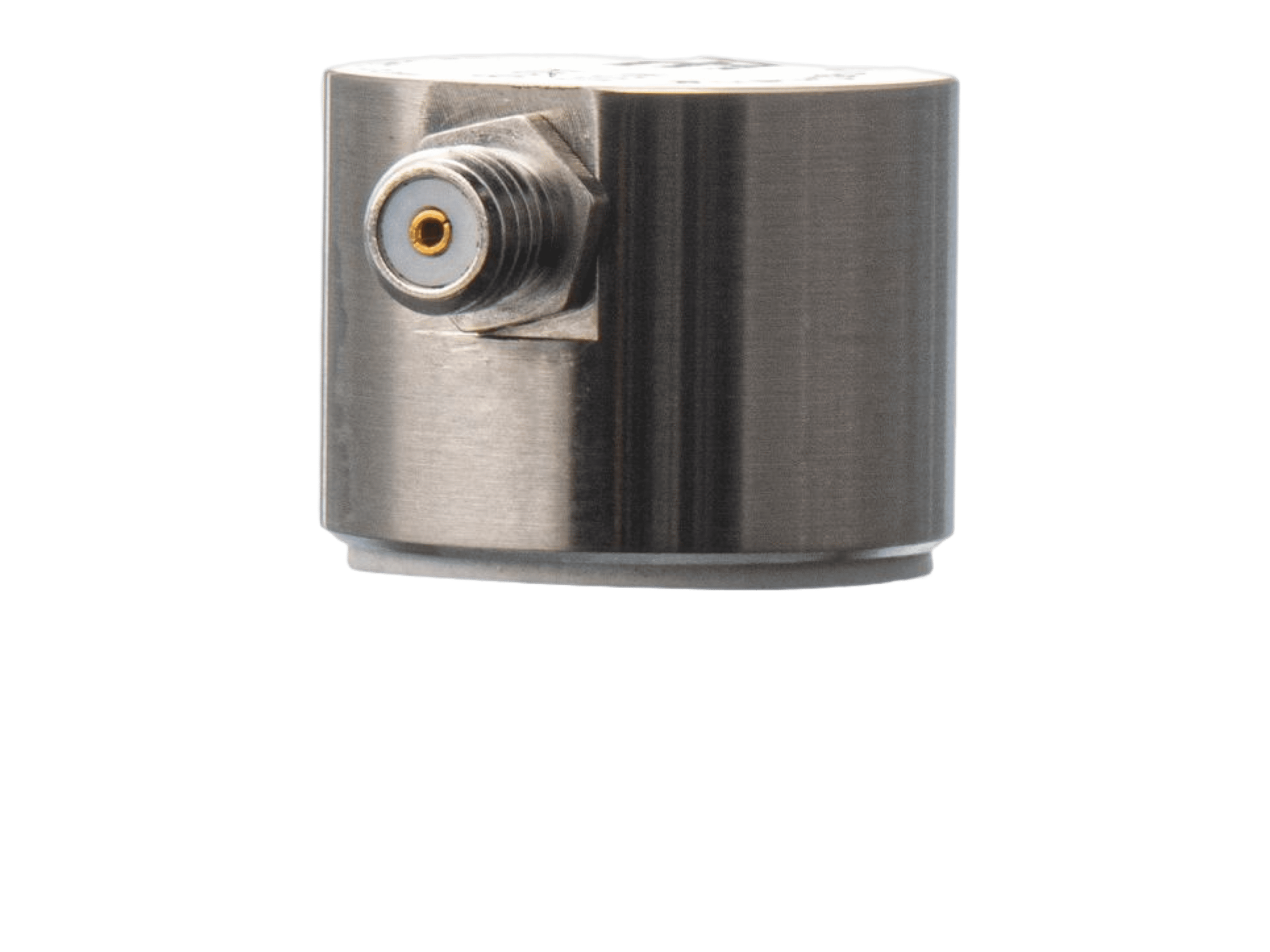

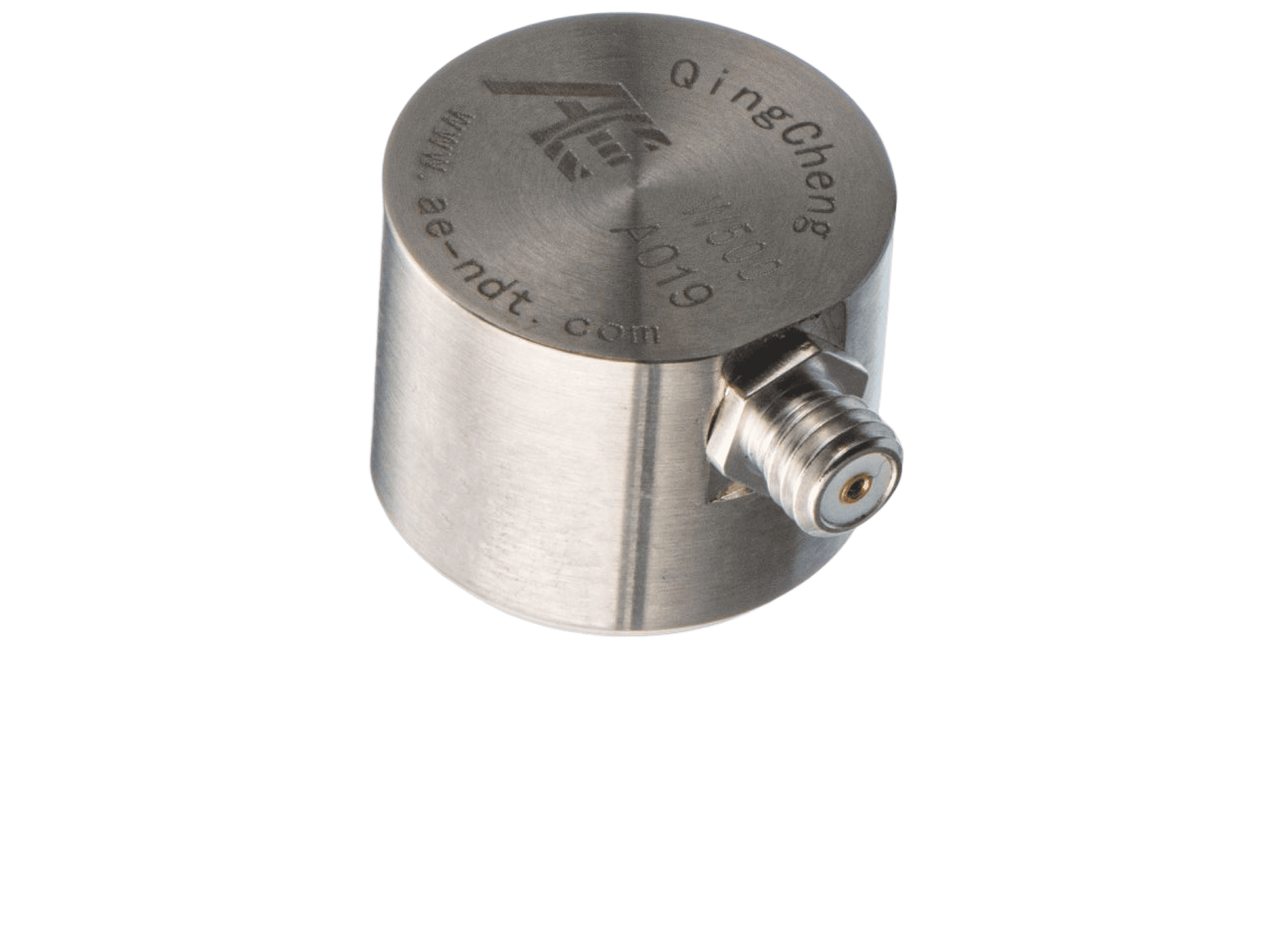

W500 Wideband AE Sensor
Model：
W500 AE sensor
Description：
Passive piezoelectric AE sensor with wideband. It is specially designed to provide a flat frequency response to acoustic emission signals over its entire frequency bandwidth.
Features：
Passive piezoelectric AE sensor with wideband，stainless steel case and ceramic interface.
ENQUIRY NOWCONTACT：+86-20-32290092
Applications
W500 is a passive piezoelectric acoustic emission sensor. It is well suited for laboratory studying of surface displacement of structures due to different AE modes.It also could be used in applications requiring frequency analysis and composites research. It could be easily mounted with a magnetic hold-down.
|
Technical Specs |
|
|
Resonant Freq. Ref V/(m/s) |
500kHz |
|
Frequency Range |
100kHz-1000kHz |
|
Sensitivity Peak Ref V/(m/s) |
>65dB |
|
Working Temp. |
-20 to 120℃ |
|
Size（DxH） |
19×15mm |
|
Weight |
19 g |
|
Case Material |
SUS-304 |
|
Face Material |
Ceramic |
|
Protecting Grade |
IP68 |
|
Connector |
M5 |
|
Connector Location |
Side |
|
Accessories |
|
|
Preamplifier |
PAS/PAV |
|
Signal cable model |
RG178/RG316 |
|
Hold-down |
M20 |
