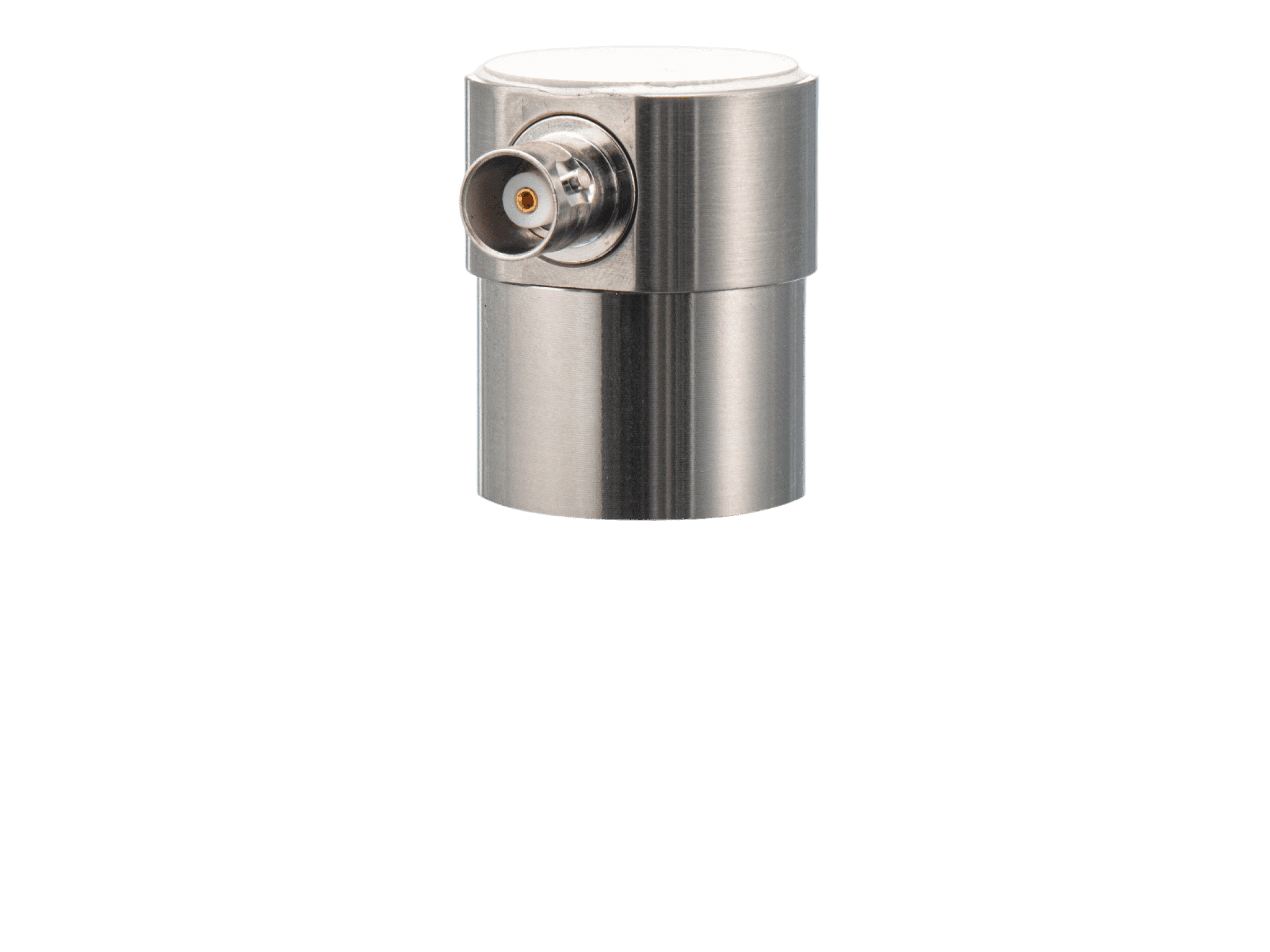

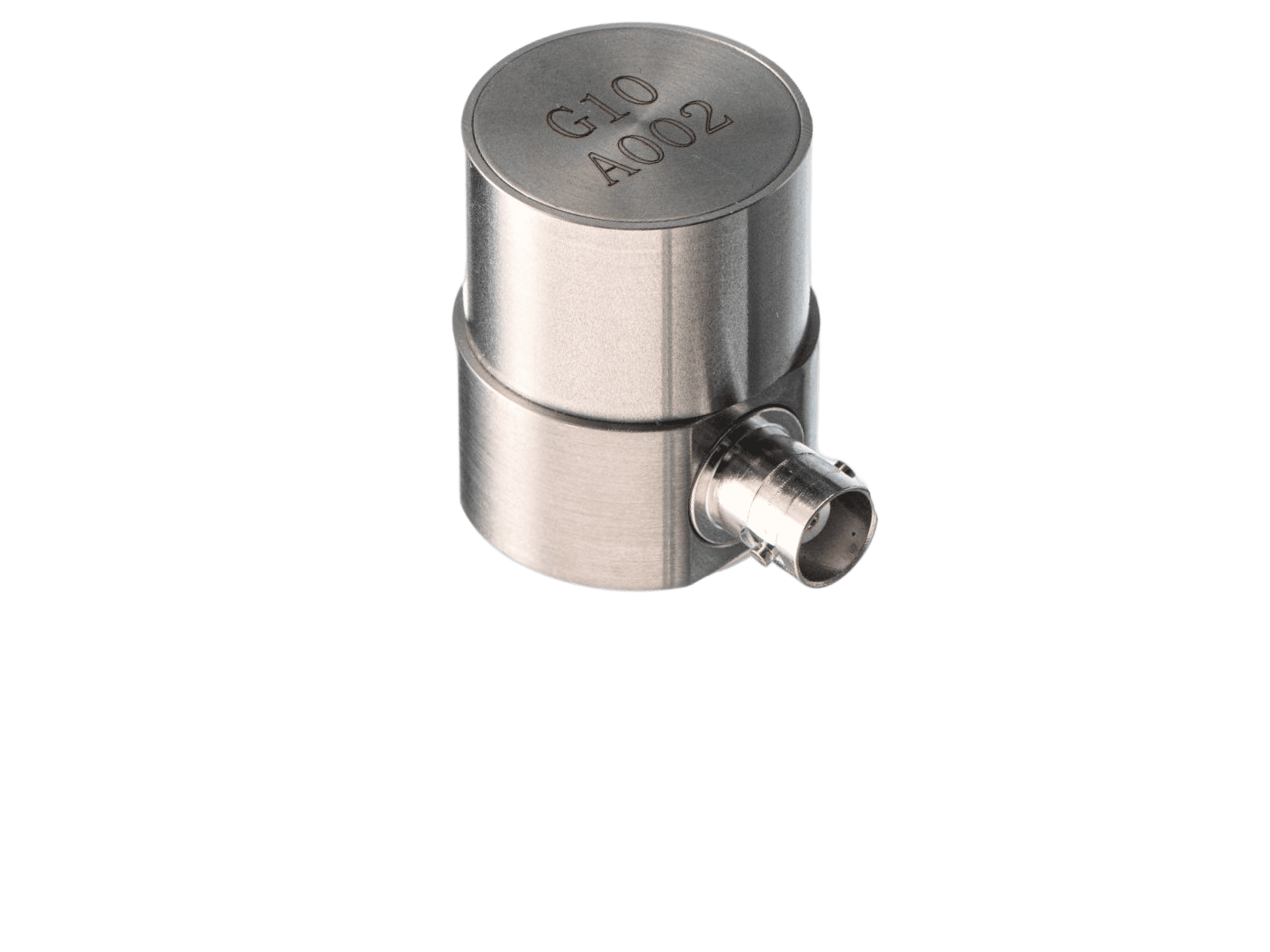

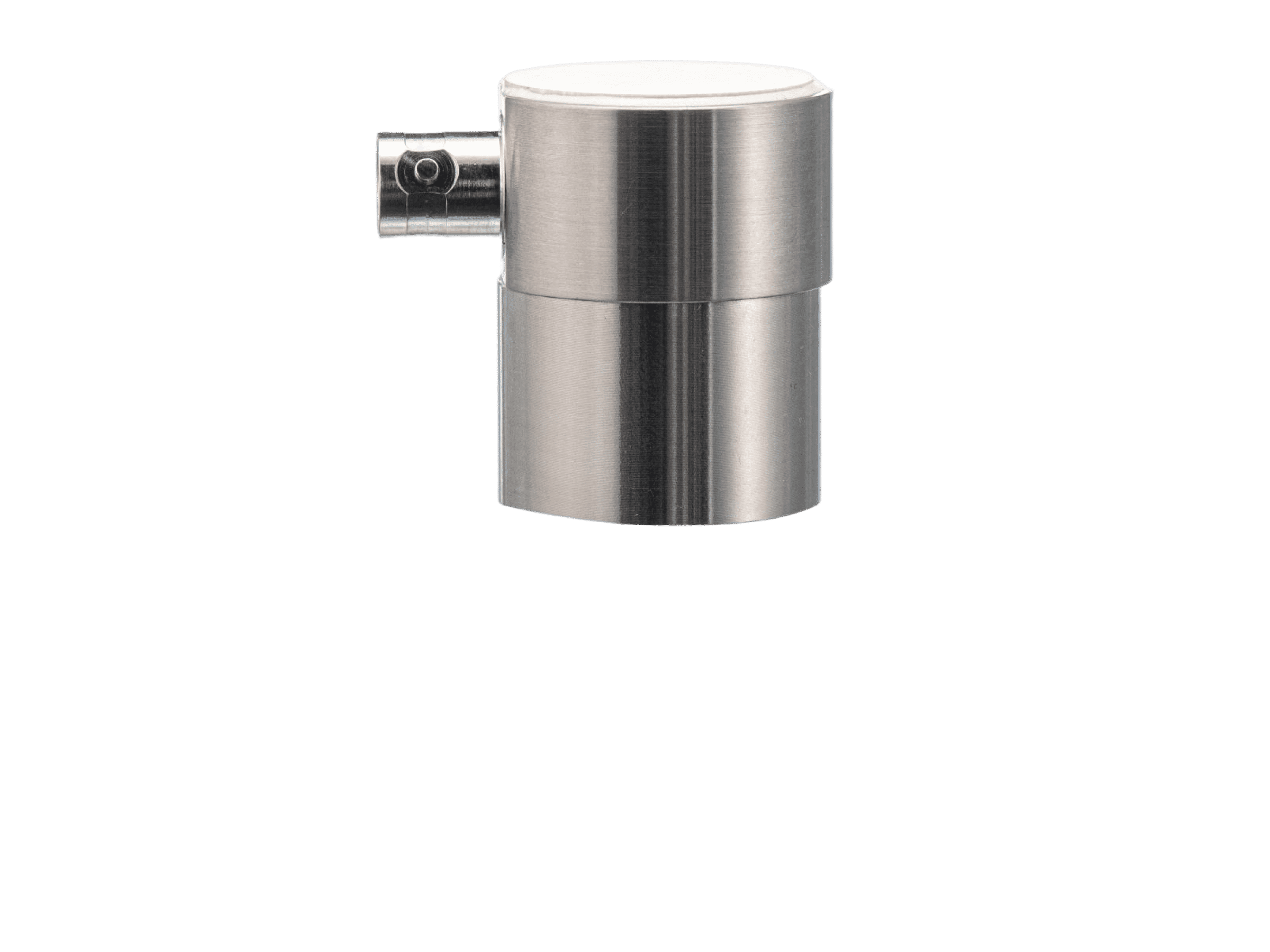

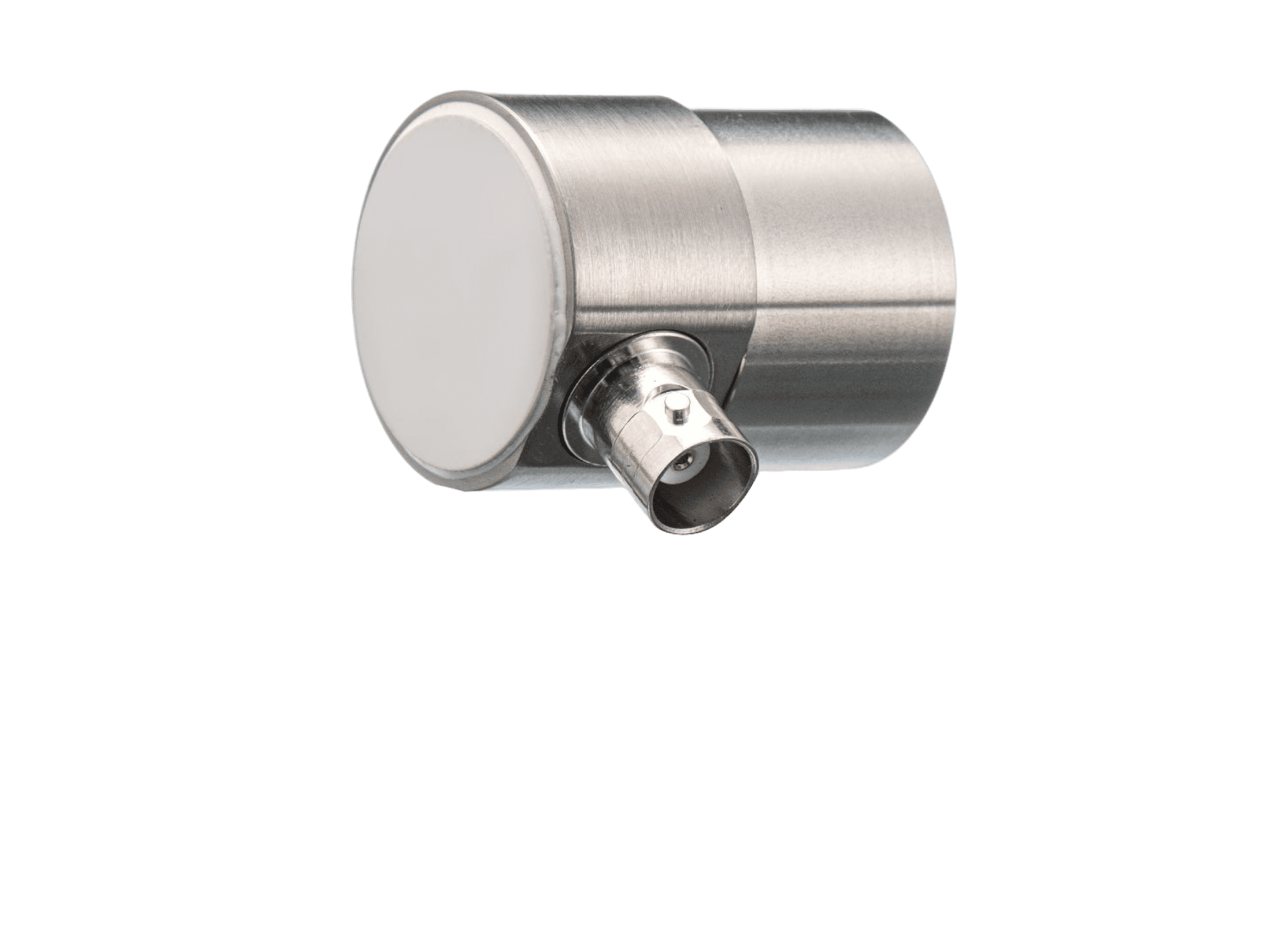

G10 Low Frequency Acoustic Emission Sensor
Model：
G10 sensor
Description：
G10 is an ultra low frequency acousitc emission sensor with narrowband. And 1Hz -15kHz bandwidth makes it suitable for detecting very low frequency acoustic emission signals like geologic structure, leakage and corrosion.
Features：
Stainless steel case and ceramic interface, BNC connector. Rugged design, stable performance, good compatibility.
ENQUIRY NOWCONTACT：+86-20-32290092
Applications
G10 is a passive piezoelectric acoustic emission sensor. The ultra low frequency characteristic makes it suited for monitoring geologic structures like slope. It also could be used for monitoring leakage and corrosion of pressure vessels or valves.
Technical Specifications |
|
Frequency Range |
1Hz -15kHz |
Sensitivity Peak Ref V/(m/s) |
>80dB |
Working Temp. |
-20 to 120℃ |
Size（DxH） |
31×38mm |
Weight |
213g |
Case Material |
SUS-304 |
Face Material |
Ceramic |
Protecting Grade |
IP62 |
Connector |
BNC |
Connector Location |
Side |
Accessories |
|
Signal cable model |
SYV-50-3/ STYV-50-2 |
Hold-down |
M36 |
Preamplifier |
PAS/PAV |
