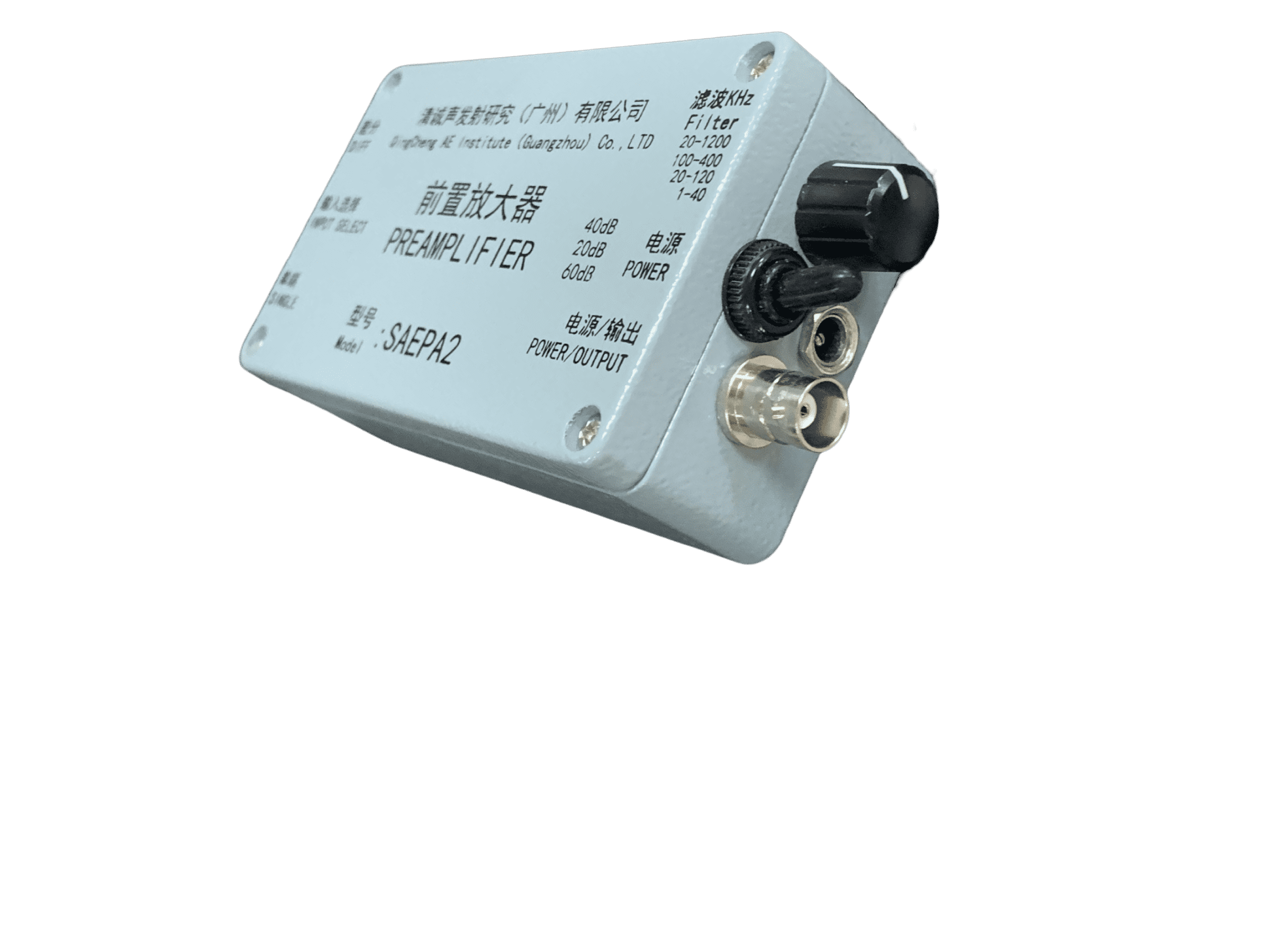

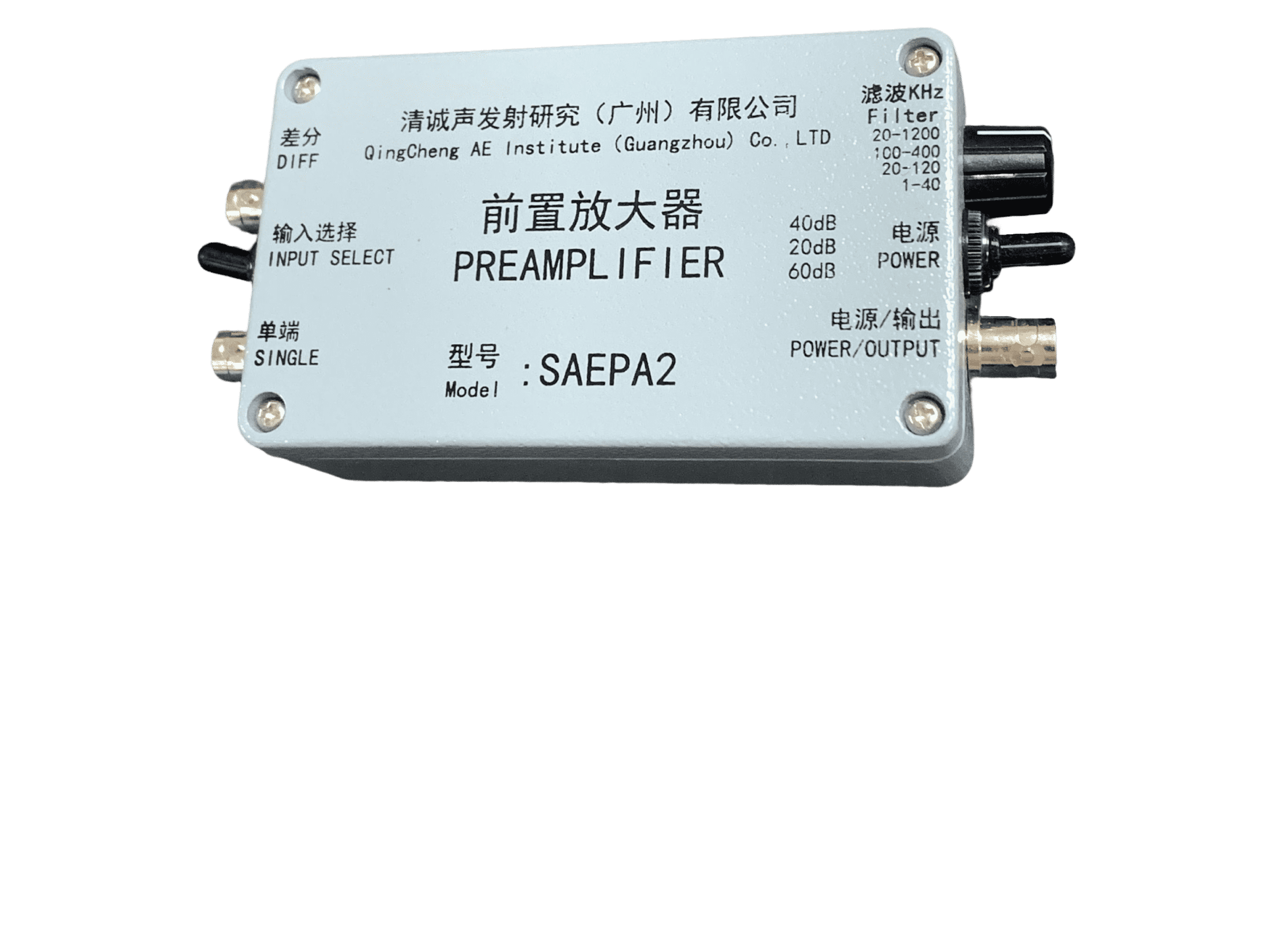

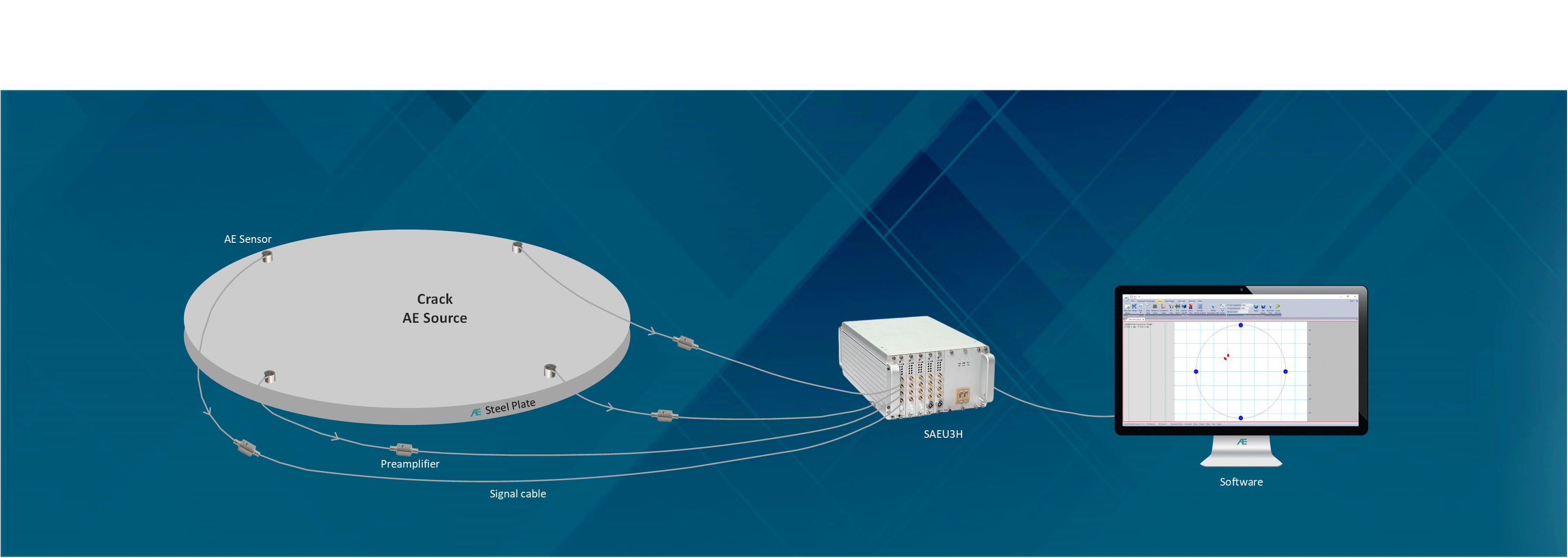

PAS Acoustic Emission Multi-functional Preamplifier
Model：
PAS
Description：
Available in both phantom and adapter power supply, and it is compatible with most common sensors and acoustic emission acquisition boards on the market.
Features：
4 filters and 3 gains, and can be connected to differential sensors. It is available in both phantom and adapter power supply
ENQUIRY NOWCONTACT：+86-20-32290092

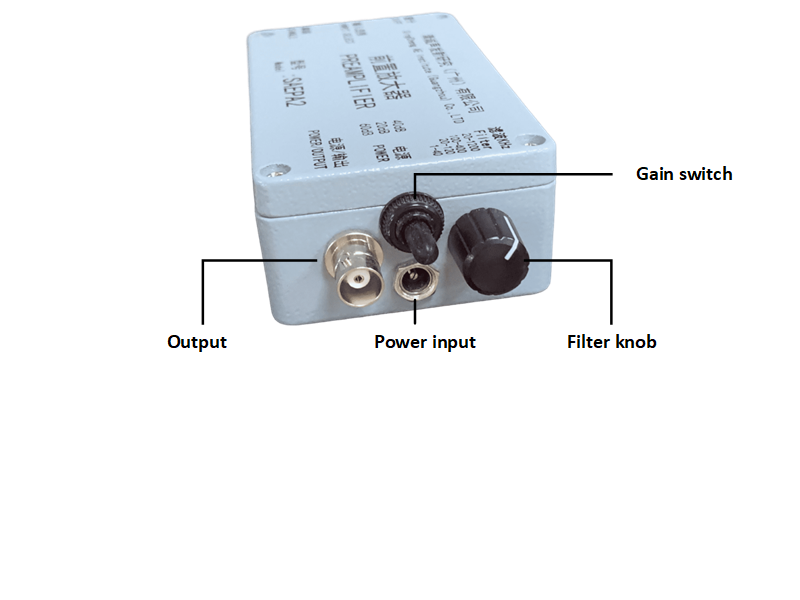

PAS Acoustic Emission Multi-functional Preamplifier
Main Features:
- The PAS preamplifier is a broadband universal type that can be used for most common models of sensors and acoustic emission acquisition cards from various manufacturers;
- The preamplifier gain has three options: 20/40/60dB;

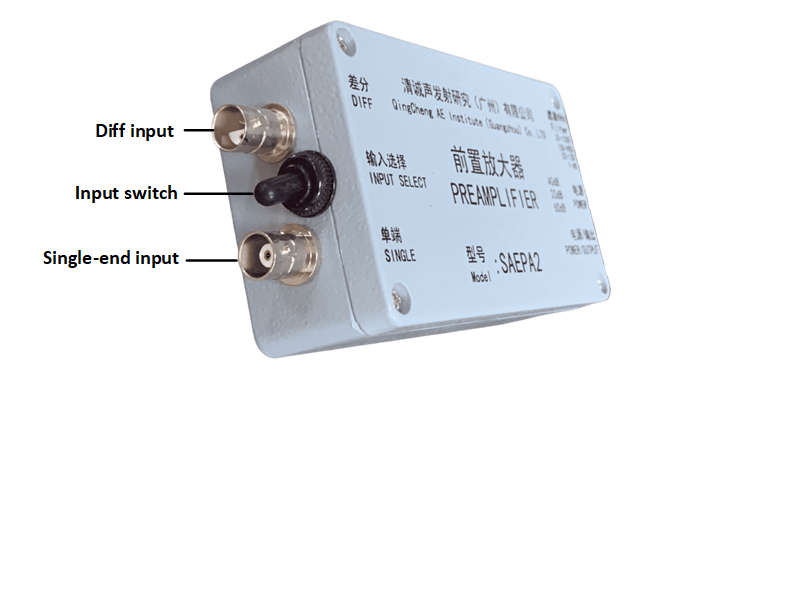

- Single ended/differential signal input methods;
- There are two power supply options available: phantom power supply, which is carried and supplied by signal cables; Or directly powered by an external power source.
- Built in filter, corresponding frequency can be divided into 4 gears for selection;
- Has the ability to withstand electrical shock protection and restore resistance to blocking phenomena;
- Automatic Sensor Testing (AST) function, which can send a test signal to the sensor (under phantom power supply);
- Metal shell, shielded from electromagnetic interference, and resistant to electrical shocking.
Technical Specifications
| Gain | 20/40/60dB |
| Response frequency | 1.3kHz～1.2MHz |
| Noise | ＜24dB |
| Filter |
20kHz-1200kHz 100kHz-400kHz 20kHz-120kHz 1kHz-40kHz |
| Output range | ±10V（Vpp） |
| Input capacitive reactance | 15pF |
| Working voltage | 24V-32V |
| Impendence | 50Ω |
| Quiescent current | 31 mA |
| Maximum current | 100 mA |
| Working temp. | -20℃～+60℃ |
| Size | 110mm×65mm×37mm |
| Weight | 300 g |
| Protection level | IP65 |
| Shell material | Cast aluminium |
| Connector | BNC |
Notes:
1. The output impedance of the preamplifier must match with the input impedance of the downstream instruments (such as professional AE acquisition unit, DAQ, or oscilloscope). Otherwise it will lead to the gain of the preamplifier to deviate from the nominal gain value, resulting in signal amplitude deviation.
2. If the output of the PAS preamplifier connects to the non professional AE acquisition units (e.g. DAQ or oscilloscope), an external power adaptor is required. On the other hand, a PPS is required to supply power to the preamplifier for the PAV preamp or built-in preamp.
3. Connection must be correct. The following three wrong operations may lead to damages to the preamplifier:
a. The input voltage is 25% higher than the power supply requirement.
b. The input and the output of the PAS preamp are reversed connected.
c. The positive and negative polarities of the power supply are reversed, when the external DC 28V is applied.

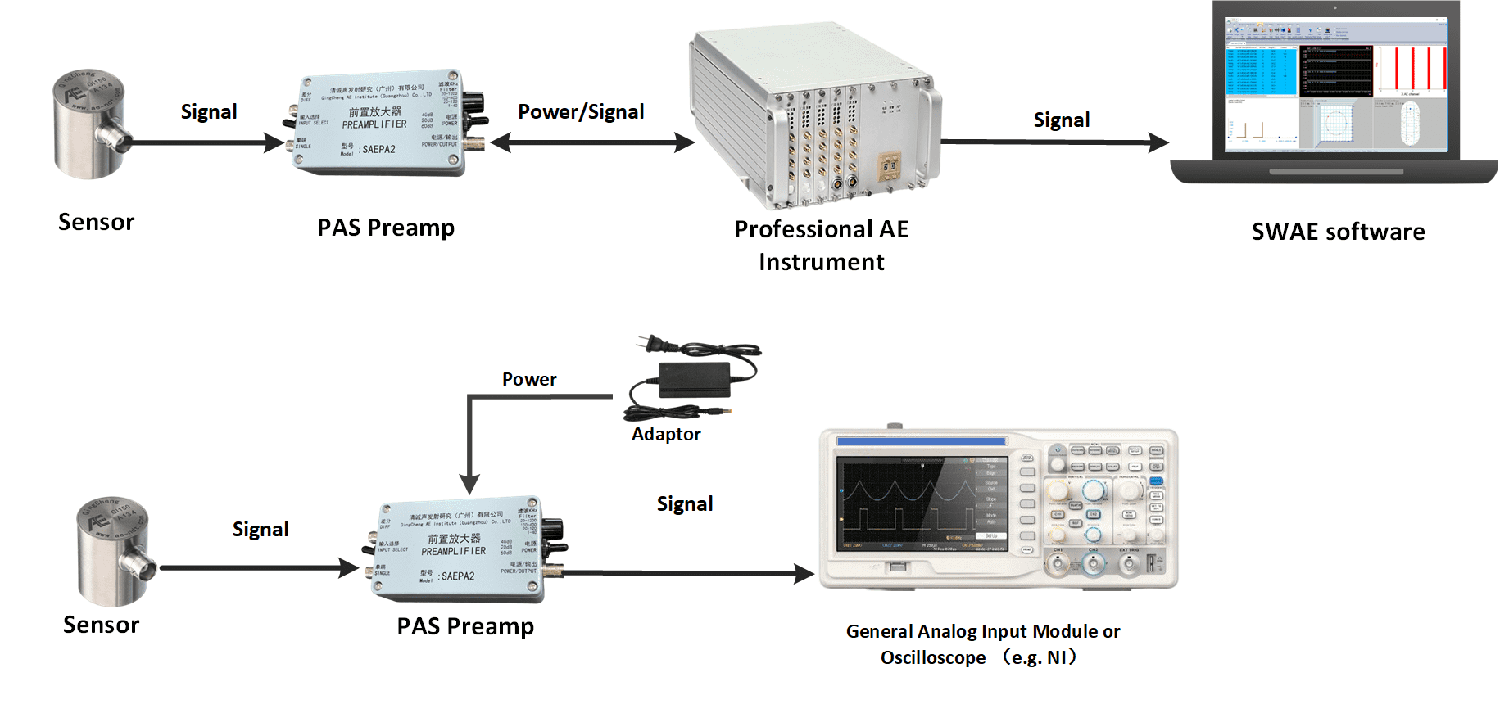

PAS preamplifier connection diagram：
